Features: two-speed mixing powder, pneumatic manual revolving door discharge, starting at low speed to high speed mixing and low speed mixing flour, to open the door automatic conversion.
Flour box specifications: 2000 mm long, and the powder quantity is 300 kg each machine.
4, Disc Type Curing Machine: 1 set
Motor power: 4 kw
Raw material specifications: 2200mm*410mm Φ.

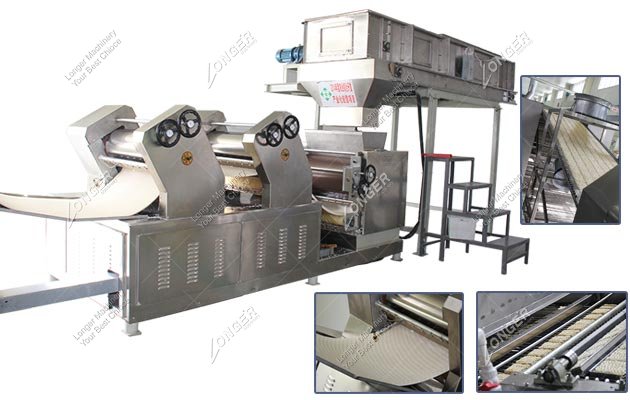

5, Compound Dough Pressing Machine: 1 set
Motor power: 7.5 kw (frequency control of motor speed).
Roller 3 groups: Rollder width 730 mm, diameter respectively are 270 mm, 270 mm and 300 mm.
Motor power: 11kw+7.5kw+7.5kw=26kw(frequency control of motor speed).
Seven groups roller: Roller width is 730 mm, diameter respectively 270 mm, 270 mm and 248 mm, 248 mm and 216 mm, 180 mm and 180 mm.
Including: Press roll gap adjusting device, cutting knife, corrugated forming device, forming mesh belt.
7, Single-layer Steaming Noodles Machine: 1 set
Power: 4 kw (frequency control of motor speed)
Steam tank length: 32 meters
Including: Steamed tank insulation type, mesh conveyor belt, steam injection pipe, valves, pressure gauge, thermometer, exhaust 2 SET, 20 m (straight line) pipe, a section to open the door institution, axial flow fan 0.55 kw*2 sets, brush mesh belt equipment, oil brush equipment, 1 set inlet spray nozzle device.
Note: The oil level of automatic control and the oil temperature control, three thermometer show oil temperature in the front, middle and latter, outside sealing plate and the chimney is made of stainless steel,all stainless steel wxcept slag filter, the outer filter adopts the form of mesh belt.
At least 200 degrees high temperature liquid level display glass tube heat resistance. Frying oil pans in front of the machine also has a separate pump recovery unit, behind frying machinehas instant noodles conveying turn-over device.
10, Noodles box switch: 1 set
Materials: the transmission, the frame body adopt quality carbon steel.
Including spare noodles box 1 set

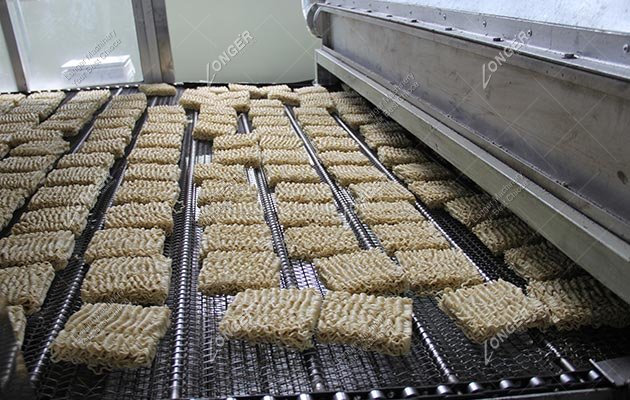

11, Strong Air Cooling Machine: 1 set
Power: 1.5 kw, including noodles finishing machine, suction fan 3 kw*2, inlet air: 0.37 kw*14.
Air cooling form: Strong air cooling, central exhaust.
Including: Finishing machine, 9 meters changfeng groove, instant noodles track, scraping type dial rod conveyor belt, oil pan, two suction fan, fan blowing 16, 10 m exhaust duct.
Features
3, Two-axis Double Speed Mixer: 2 sets

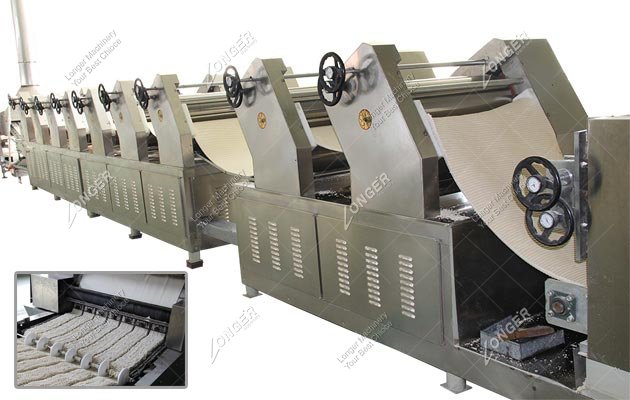

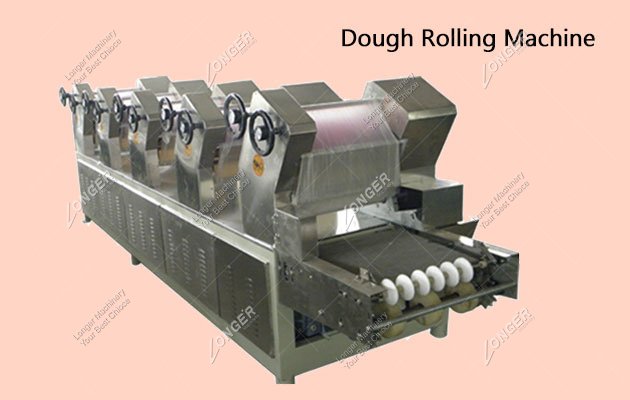

6, Continuous Dough Rolling Machine
9, Frying machine: 1 set
