Features

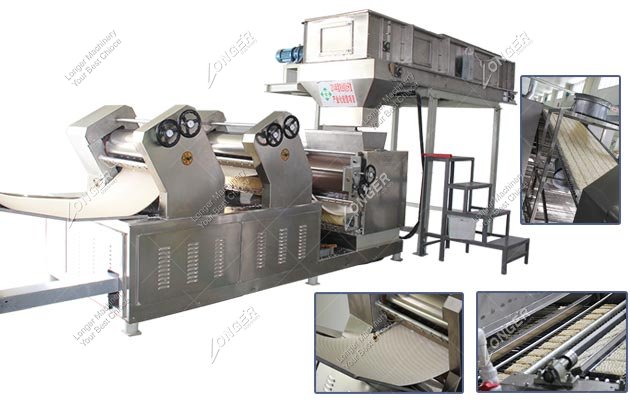

Bowl Instant Noodle Production Line Configuration
Characteristics of Instant Noodle Production LineTechnical Data
| Equipment | Qty | Remark |
| Brine metrology mixer | 1set |
1.5 kw Pump power 0.75 kw Capacity: 1000 l/units |
| Supply metering device | 1set |
Volume of 140 liters round of tank stainless steel pump Power: 0.75 kw |
| Double speed dough mixer | 1set |
power 13/16kw 300 kg/pan manually open the door |
| Disc curing machine | 1set |
Power 4 kw Tray 2000 mm*410 mm |
| Single continuous rolling machine | 1set |
Paste width 450mm Power: 5.5+7.5=13kw 8 pcs steel roller |

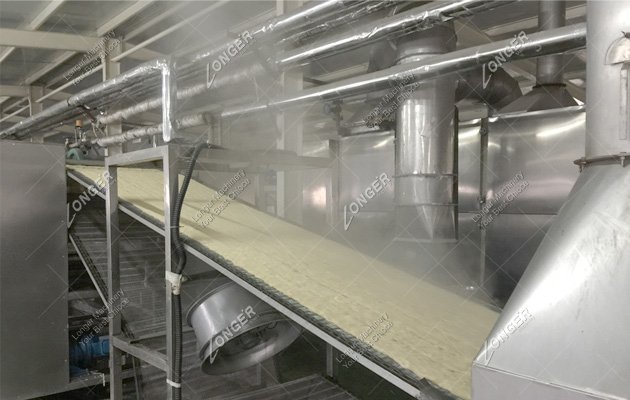

| Single-layer steamer | 1set |
Length: 24 meters Main drive: 1.5 kw powe Fan: 0.37 kw * 2 units water seal stainless steel |
| Cutting and folding machine | 1set |
Main drive: 1.5 kw Air knife: 0.9 kw*2 With spray device |
| Fried dryer | 1set |
Main Drive: 2.2kw Lifting: 2.2 kw Circulating pump: 7.5kw Gear pump 2.2 kw air knife 0.9 kw * 2 3.5 m3 oil tank 1 carbon steel production |
| Strong Air cooling device | 1 set |
Blower: 0.37 kw*14 sets Exhaust fan: 3 kw carbon steel plastic sheeting |
| Conveyor | 2set |
0.37 kw * 2 main drive mechanical control stainless steel panel |
| Products conveyor | 2set |
Main Drice: 0.37 kw * 2 mechanical control stainless steel panel |
| Electric control cabinet | 1 set |
Frequency control motor speed PLC program control |
| Total: 60kw | ||
