Not Fried instant noodles production line is using high temperature drying technology specializing in the production of healthy environmental instant noodles. Dry instant noodles production line breaks through the traditional system of the rolling frying technology, overcome slaking flour, cooking, drying, corrugation, quantitative and other technical problems, has realized the integration of automatic production. The produced noodles not only retain the natural fragrance, also delicious and nutritious. At the same time, preserve dietary fiber, vitamins, trace elements, amino acids and other nutrients to a great extent.
Product Features Of Ramen Noodle Production Line
1, using high temperature rapid drying technology, make the non Fried instant noodles water reabsorbing capacity and gelatinization to reach the requirement of instant noodles, and the disadvantages of large investment and high energy consumption are obviously improved.
2, Using steaming technology, instead of traditional craft, make non-fried instant noodles water reabsorbing greatly shorten the time (2-4 minutes), especially suitable for the production of not Fried wide instant noodles.
3, Taste like dough, has a delicate taste, eat healthier.
Related Introduction of Non Fried Instant Noodle Processing Line

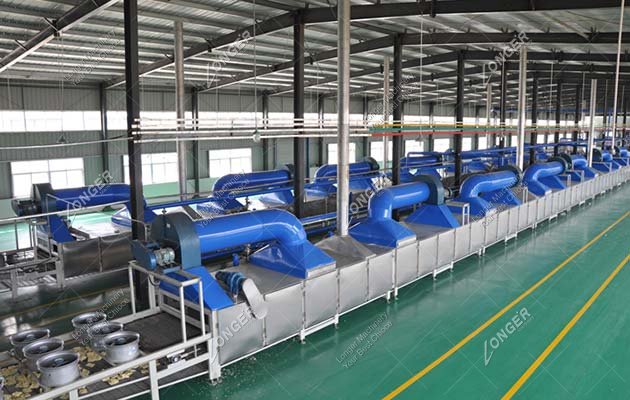

Production process of Not Fried instant noodles is basically the same as the Fried type, that is dough mixing, curing, dough pressing, noodles steaming, cutting, drying, cooling, conveying and packaging.
Power: 1.5 kw
Pump: 0.75 kw
Capacity: 1000L/ set
Dimension: 1000*1000*2300 mm
Meter Supply Device
1set
Volume: 110 liters
With liquid level display
Material: stainless steel
Pump: 0.75 kw
Dimension: 1000*600*2000 mm
Double Speed Dough mixer
2sets
Unit Power: 11/14 kw
Capacity: 250 kg/pot
Manually open door
Dimension: 3500*900*1100 mm
Disc Curing Machine
1set
Power: 4kw
Size of pan diameter: 2000*410 mm
Dimension: 2300*2000*1000 mm
Single Continuous Rolling Machine
1set
Dough width: 650 mm
Power: 11+18.5=29.5 kw
10 sets steel roller
Dimension: 9200*1350*1700 mm
Single-layer Steaming Machine
1set
Length: 30 meter
Main motor power: 3 kw
Pan: 0.37kw*2
Dimension: 3100*1200*1200 mm

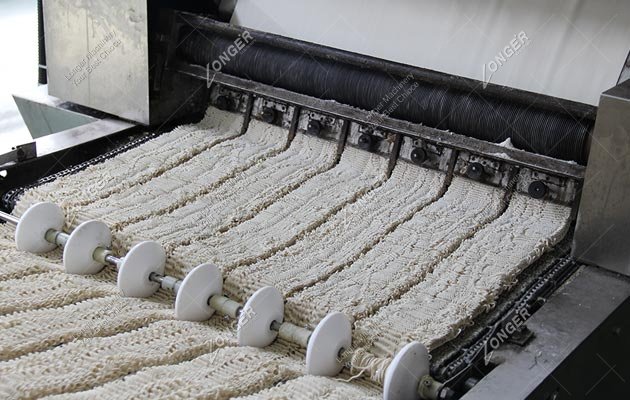

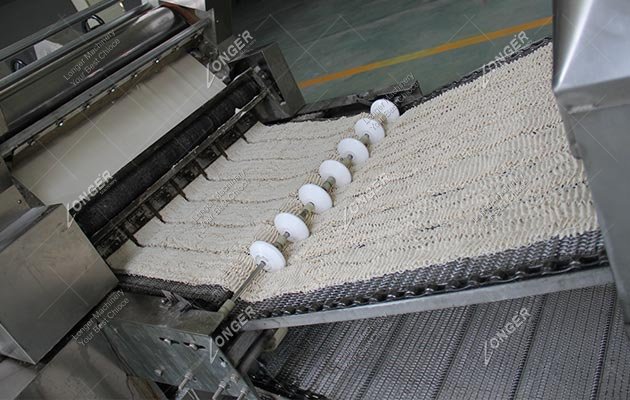

Cutting and Folding Machine
1set
Main power: 1.5kw
Starting shaft: 0.25 kw
wind blade: 0.9 kW * 2
Dimension: 5200*2000*1800 mm

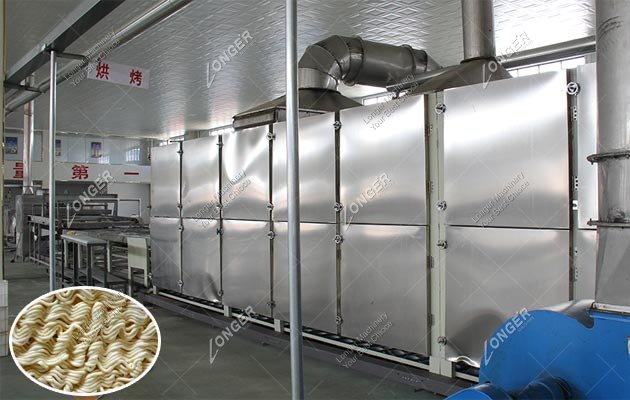

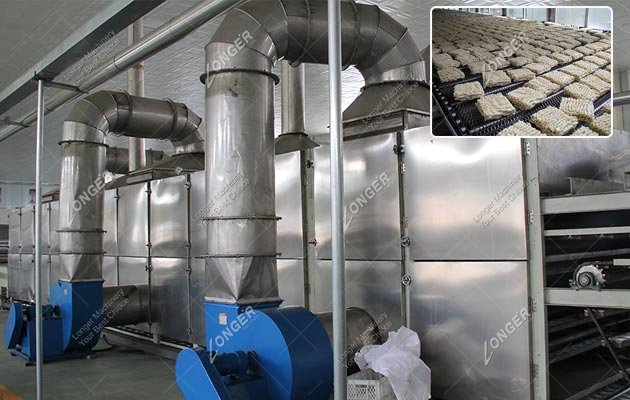

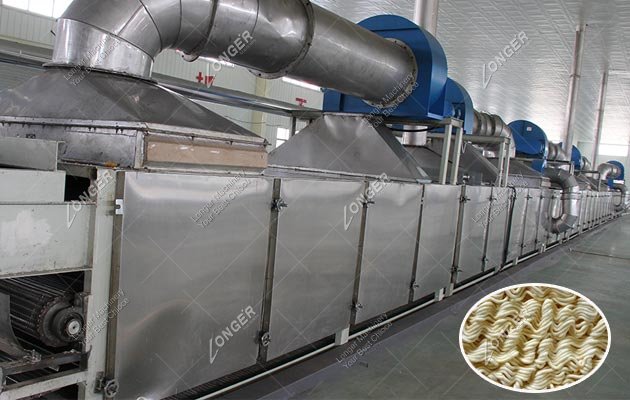

Three layers drying machine
1set
Main motor power: 2.2 kw*3
Total length: 63 m
Frequency Control+fan: 5.5 kw*8
Net bandwidth 1.4m
outlet cooling fan 0.37kw * 3
stainless steel net
Dimension: 63000*1800*3100 mm
Air Cooling Device
1set
Power: 1.1 kw
Fan power:0.37 kw*8
Dimension: 7000*1800*2100 mm
