Features
5. Dough pressing machine: Rolling, forming, splitting;Technical Data

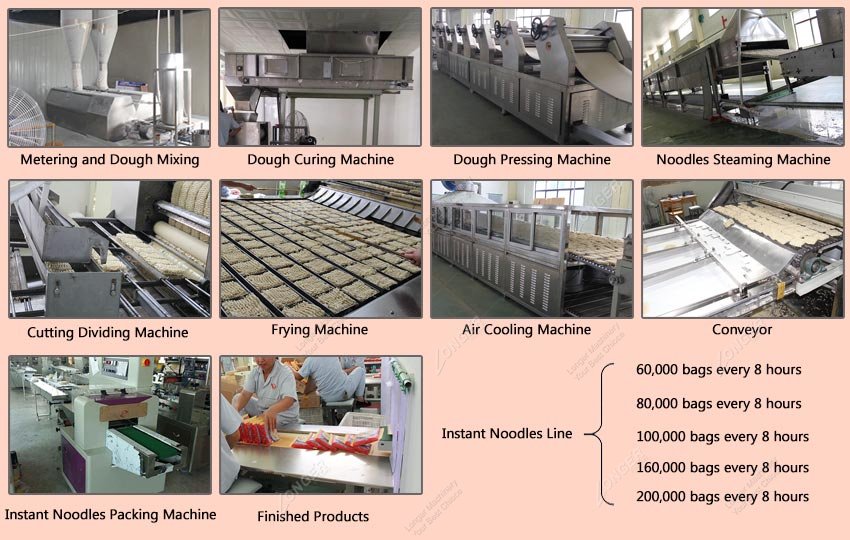

| No | Equipments |
Qty (set) |
Remark |
| 1 | Brine metrology mixer | 2 | 1.5 kw, Pump power 0.75 kw, the capacity of 1000 l/units, contact with water for stainless steel surface |
| 2 | Supply metering device | 1 | Volume of 110 liters with LCD., round of tank, stainless steel, the pump is 0.75 kw, |
| 3 | Double speed dough mixer | 2 | power 9/11kw, 200 kg/pan, manually open the door, contact with the surface of stainless steel and nylon |
| 4 | Disc curing machine | 1 | Power 4 kw, Tray 2000 mm x 410 mm and raw material for stainless steel surface contact |

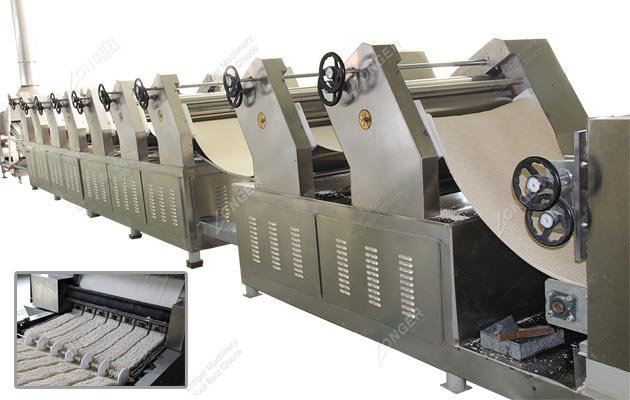

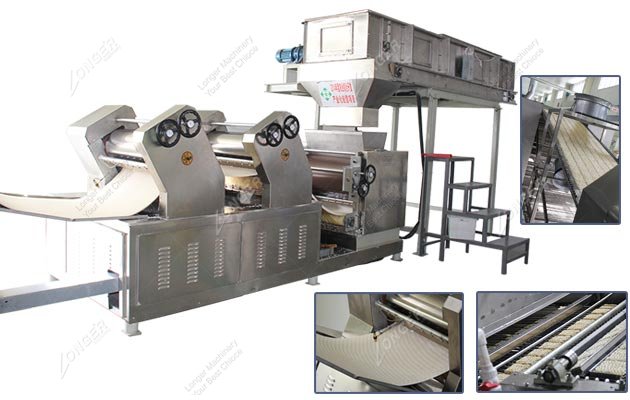

| 5 | Single continuous rolling machine | 1 | Paste width 510 mm, 7.5+11=18.5kw power, 9 pcs steel roller, roll diameter φ395*1, φ300*2, φ248*2, φ180*2, φ162*2 |

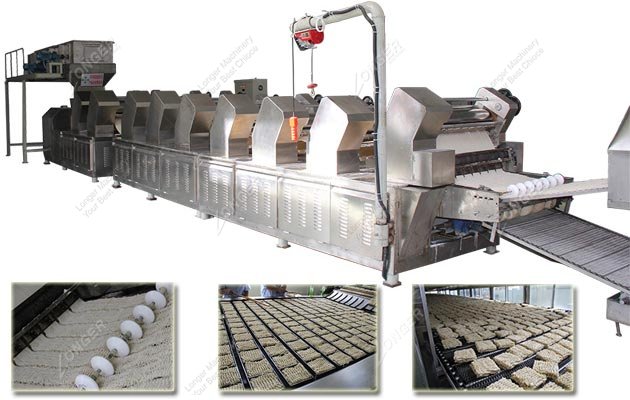

| 6 | Single-layer steamed noodles machine | 1 | Machine is 28 meters long, 3 kw power (VVVF), fan 0.37 kw*2 units, water seal, mechanical lifting door, stainless steel |
| 7 | Cutting and folding machine | 1 |
Main drive 1.5 kw (frequency control of motor speed), air knife: 0.9 kw, With spray device. |
| 8 | Fried dryer | 1 | Main drive 3 kw, Lift 2.2 kw, Circulating pump 11 kw, Gear pump 2.2 kw, 0.9 kw wind knife *2,carbon steel |
| 9 | Air cooling device | 1 | Blower: 0.37 kwx14 sets, exhaust fan 3 kw power supply by Fried, carbon steel plastic sheeting |
| 10 | Shunt conveyor | 1 | Main drive 1.1 kw (VVVF), |
| 10 | Conveyor | 3 | 0.37 kw* 3 main drive, mechanical control, stainless steel panel |
| 11 | Products conveyor | 3 | 0.37 kw*2 main drive, mechanical control, stainless steel panel |
| 12 | Electric control cabinet | 1 | The main process adopts frequency control of motor speed, PLC program control |
| Total Power | whole line ~85kw |
